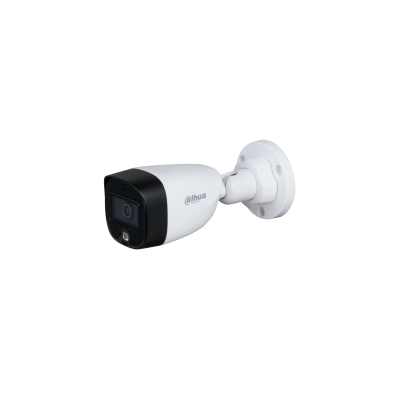

Introducing the Dahua DH-HAC-HFW1209CP-A-LED bullet camera, a pinnacle of surveillance technology designed to elevate your security system to unmatched levels of clarity and reliability. With its cutting-edge 1/2.8″ CMOS image sensor boasting 1920(H)×1080(V) effective pixels, this 2MP powerhouse ensures every detail is captured with pristine clarity, even in challenging lighting conditions thanks to its progressive scanning system and electronic shutter speed ranging from PAL: 1/25~1/100000s to NTSC: 1/30~1/100000s. Equipped with a single IR LED, this camera extends its vision up to 20 meters (65.61 ft), providing round-the-clock surveillance capabilities, seamlessly transitioning between Auto and Manual IR control. Its versatile lens options, including a 3.6mm fixed lens (with a 2.8mm option), offer expansive viewing angles, from 126.2° diagonal to 46.3° vertical, ensuring no blind spots escape detection. Engineered for durability, its metal front cover and IP67 ingress protection guarantee optimal performance even in extreme temperatures ranging from -40°C ~ +60°C (-40°F ~ +140°F), making it an ideal choice for both indoor and outdoor installations. With certifications including CE, FCC, and UL, rest assured this camera meets stringent quality standards. Experience peace of mind knowing your property is safeguarded with the Dahua DH-HAC-HFW1209CP-A-LED, a testament to reliability, innovation, and uncompromising security in every frame.
Technical Specification
General:
Dimensions: 161.3 mm × 69.7 mm × 70.0 mm (6.35" × 2.75" × 2.75")
Net Weight: 0.20 Kg (0.44 lb)
Gross Weight: 0.28 Kg (0.62 lb)
Construction: Metal front cover + plastic main body + plastic bracket
Ingress Protection & Vandal Resistance: IP67
Sensor & Module:
Image Sensor: 1/2.8" CMOS
Effective Pixels: 1920(H)×1080(V), 2MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/251/100000s, NTSC: 1/301/100000s
Minimum Illumination: 0.01Lux/F1.6, 0Lux white light on
S/N Ratio: More than 65dB
IR Range:
Up to 20 m
Temperature:
Operating Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Video & Audio:
Video Resolution: 1080P (1920 × 1080); 720P (1280 × 720); 960H (960 × 576/960 × 480)
Frame Rate:
CVI: PAL: 1080P@25fps; 720P@25fps; NTSC: 1080P@30fps; 720P@30fps;
AHD: PAL: 1080P@25fps; NTSC: 1080P@30fps
TVI: PAL: 1080P@25fps; NTSC: 1080P@30fps
CVBS: PAL: 960H; NTSC: 960H
Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / DWDR
WDR: DWDR
Gain Control: AGC
Noise Reduction: 2D
White Balance: Auto / Manual
Smart IR: Auto / Manual
Interface:
Warranty Period:
1 Year Brand Warranty
